DTH drilling rigs are built for maximum penetration and durability across tough geological conditions.

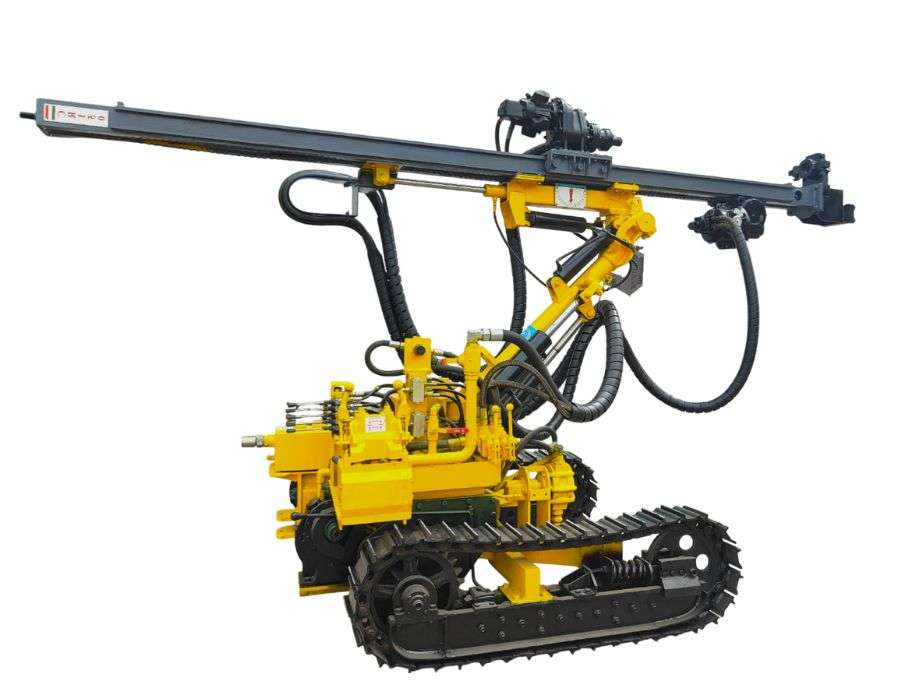

Built for challenging terrains, our crawler-mounted rigs offer excellent stability and maneuverability.

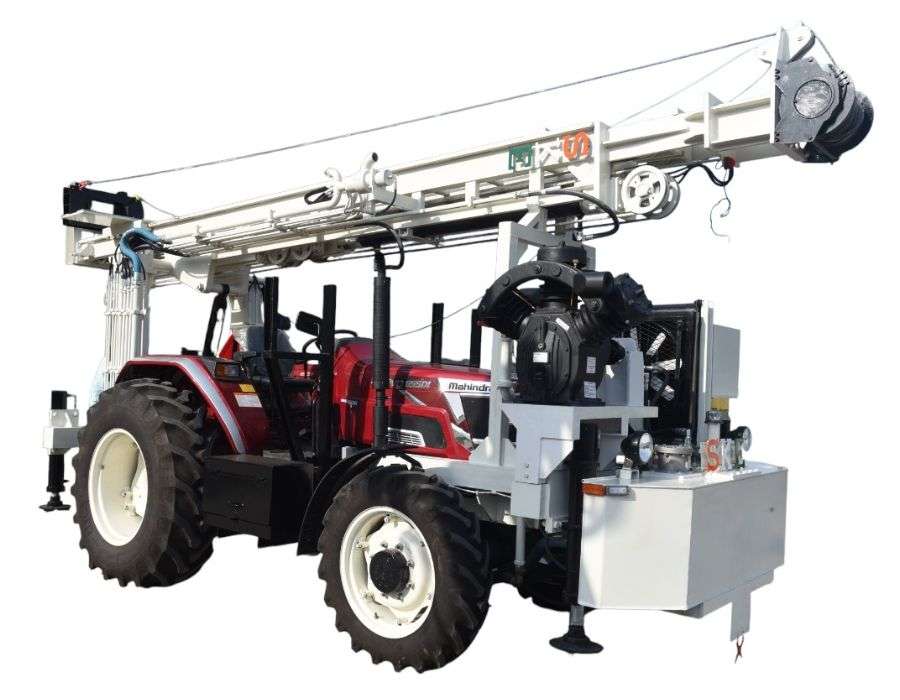

Designed for mobility and ease of operation, tractor-mounted rigs are perfect for remote drilling projects.

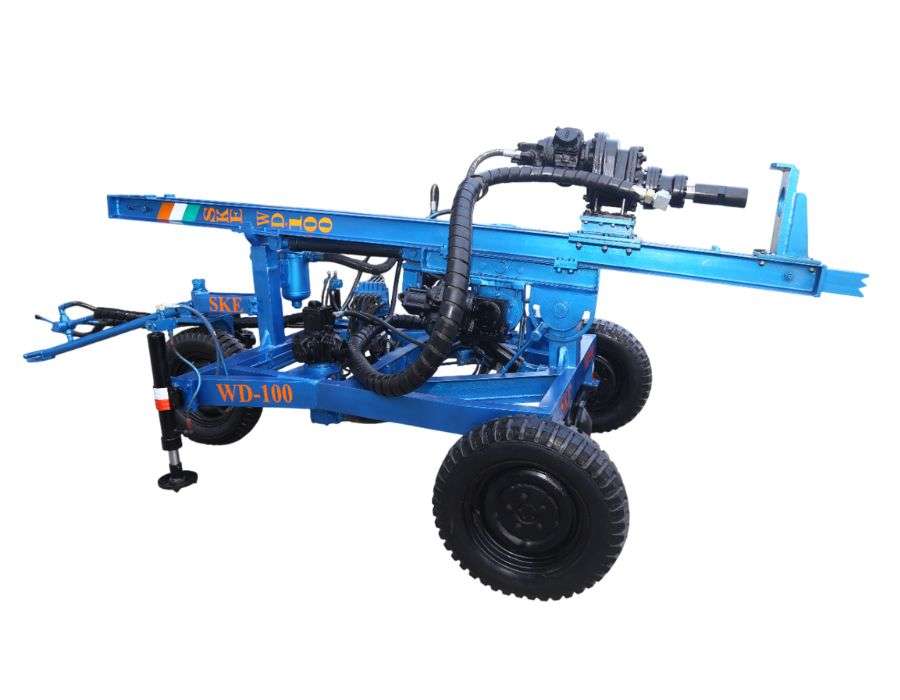

Wagon drills are engineered for surface drilling in open cast mines and precise drilling in tough conditions.

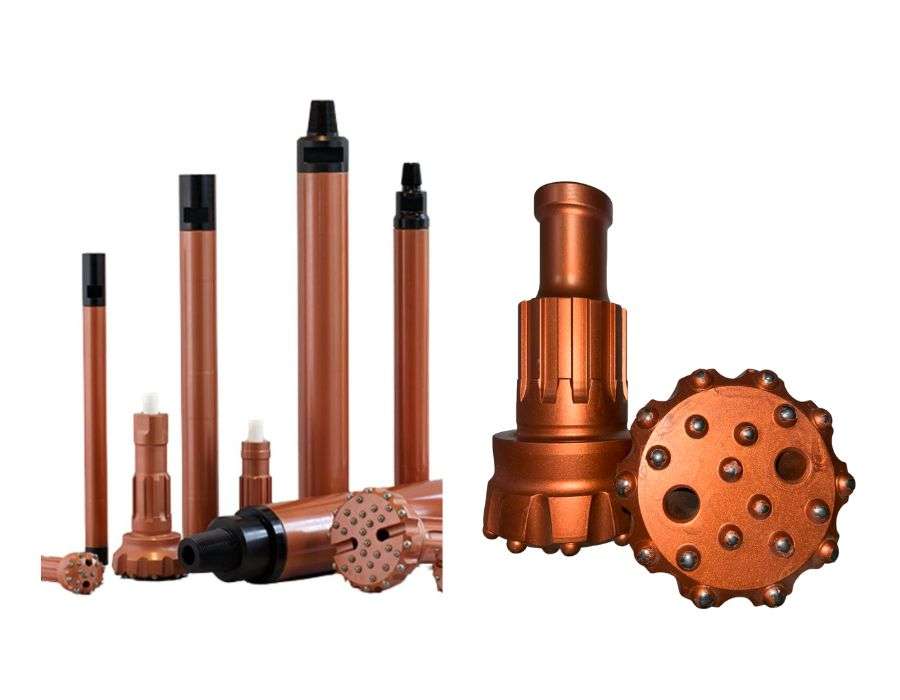

DTH hammers and button bits are crafted for high impact strength and maximum penetration.

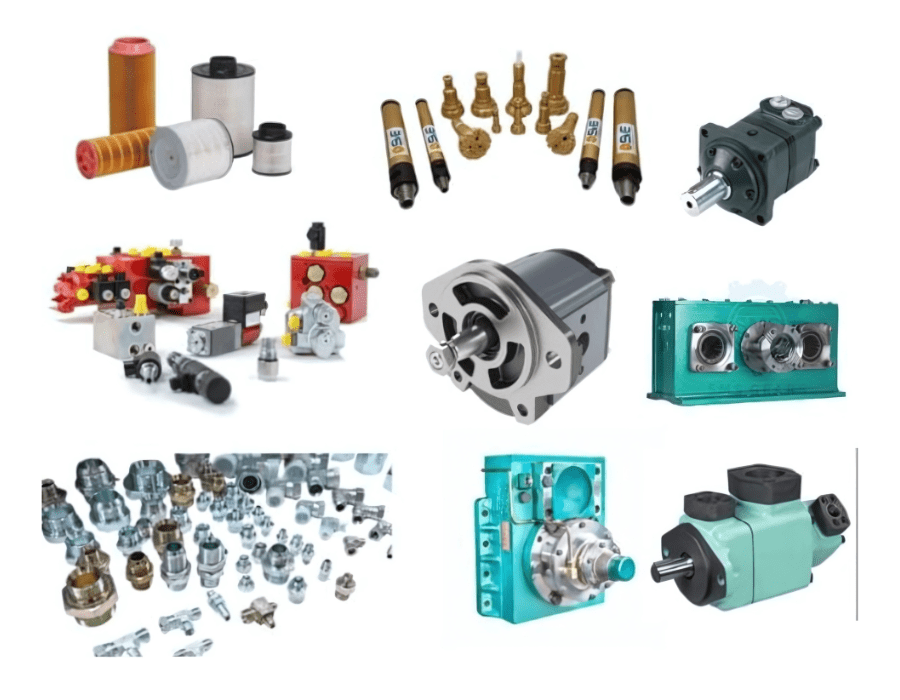

We offer a complete range of drilling accessories, including drill rods, casing pipes, centralizers, and adaptors.

Get in Touch With Us

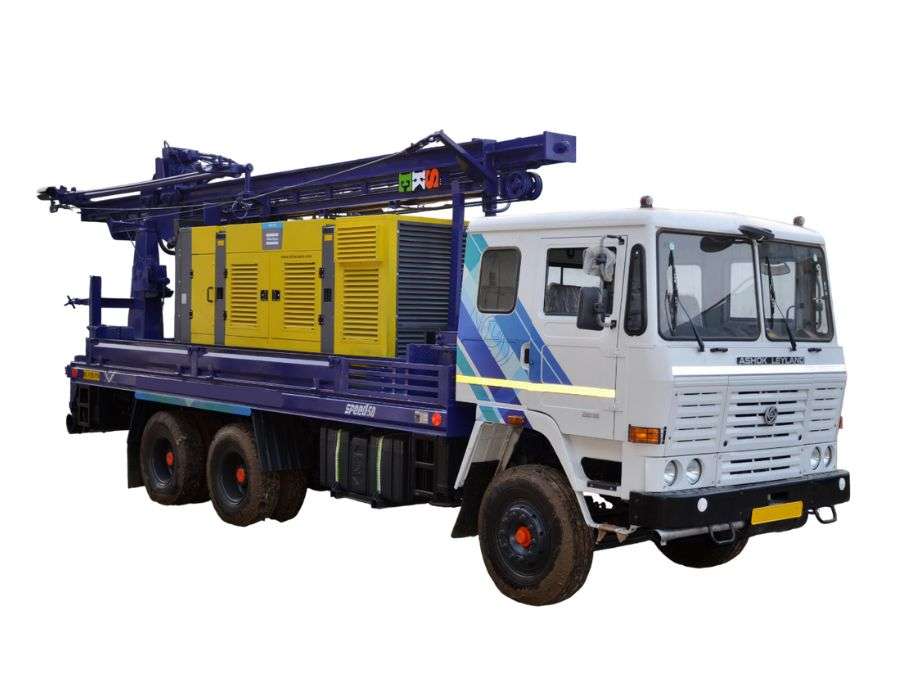

1. RIG Machine - Regular Mounting Rig (SKE DTH-100)

ROTARY HEAD
Torque	Low Speed: 8,000 ft-lbs (10.8 KN-m) @105 rpm High Speed: 5,400 ft-lbs (7.3 KN-m) @160 rpm
Rotation Speed	0 to 160 rpm
Spindle	120 mm Spindle OD
Head Travel	23 ft (7.05 m)
BREAK OUT WRENCH
Clamping Range	3-1/2 inch (90mm) to 5 inch (127mm)
Torque	16,000 lb-ft (21.7 KN-m)
ROD HANDLING
Manual Rod Handler (ARH)	Rod Size: 4-1/2 inch (114.3 mm)
Rod Box Capacity	6 Rods @19 ft (6m)
DHD LUBRICATOR
Flow	1 to 1.5 ltr/hr
Control	Flow Control STEPLESS Position Selector
Capacity	15 L
CHASSIS
Ashok Leyland 2820 or similar variant as Per Customer Request
Hydraulic System is Powered by Truck Engine Through Specially Designed PTO
LEVELLING JACK
Drill End Jack Bore	100mm Stroke 850mm
Non Drill End Bore	100mm Stroke 850mm
HYDRAULICS
Hydraulic Tank Capacity	159 gallons (600L)
Hydraulic Filtration	10 micron
Main Pump	151 cc @2,500 psi (180 bar)
Rotation Motor	400 cc @2,500 psi (173 bar)
Slow Feed pump	7.5 cc @2,500 psi (173 bar)
Jack Levelling Pump	18.2 cc @2,500 psi (173 bar)
WATER INJECTION PUMP
Flow 56 lpm
