Our Specialized Services

Repair and Refurbishment

With over 25 years of experience, Shree Krishna Engineering & Hydraulic Pvt. Ltd. (SKE) specializes in the repair and refurbishment of DTH drilling rigs and accessories.

The company provides repair and maintenance services with  expert assistance to ensure optimal performance of drilling rigs, reinforcing its commitment to reliability and customer satisfaction.

Contact Us

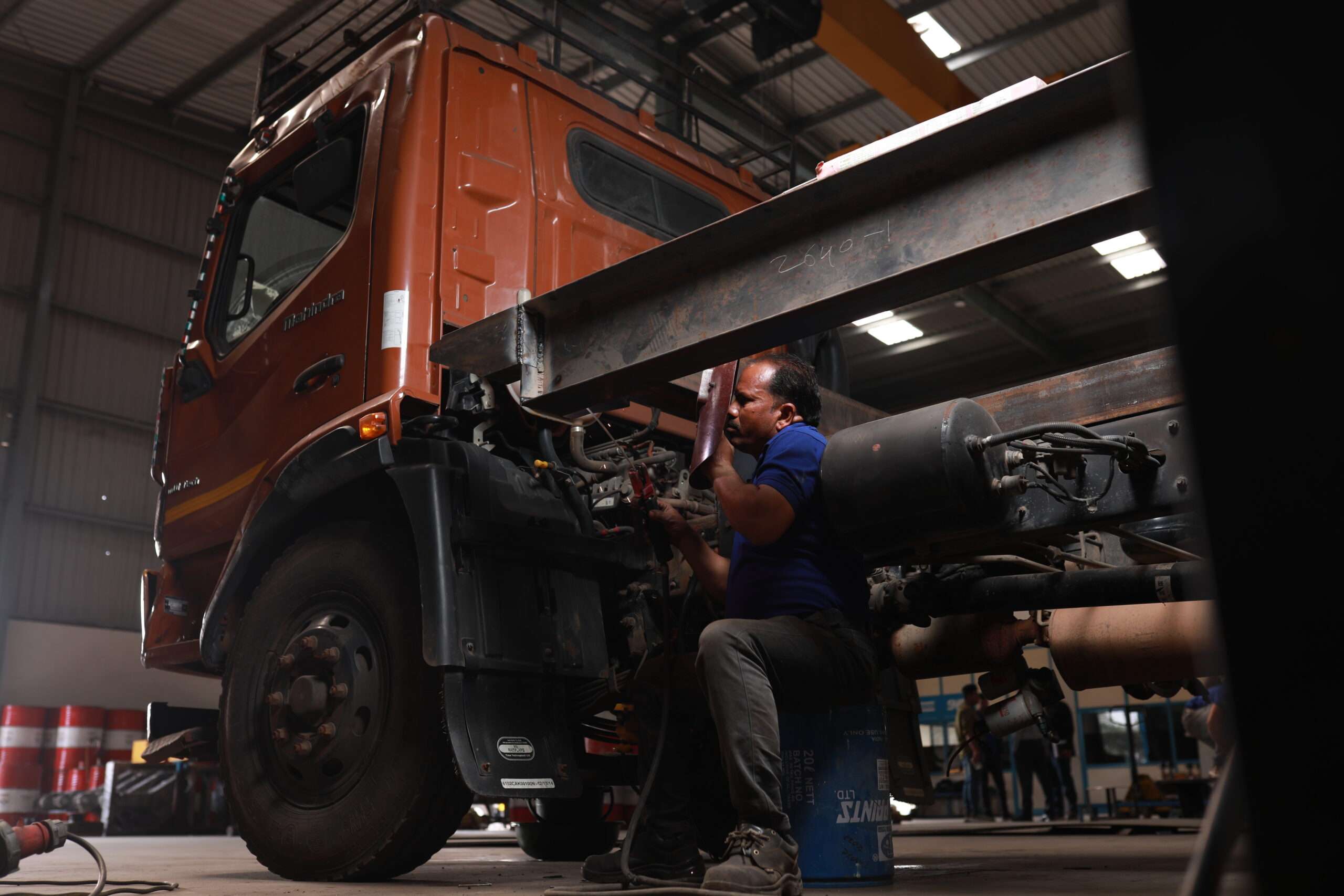

Conversion Of Regular Rig Mounting to Sensor Mounting

Shree Krishna Engineering & Hydraulic Pvt. Ltd. (SKE) has earned significant customer appreciation for its expertise in transforming regular rig mountings into advanced sensor rig mountings. With years of rich experience, the company has consistently delivered innovative and reliable solutions, setting new standards in the industry and building a strong reputation for quality and performance.

Contact Us

Get in Touch With Us

Contact Us
Shree Krishna Engineering & Hydraulic Pvt. Ltd.
1. RIG Machine - Regular Mounting Rig (SKE DTH-100)
SKE- DTH-100 Technical Data
Application Water Well Drilling
Feed System Pull back: 260KN
Pull down: 127KN
Pull Up Speed: 36m/min
Pull Down Speed: 75m/min
Drill Feed: 1.5m/min
Tower Length: 9m
Width: 520mm
Depth: 420mm
ROTARY HEAD
TorqueLow Speed: 8,000 ft-lbs (10.8 KN-m) @105 rpm
High Speed: 5,400 ft-lbs (7.3 KN-m) @160 rpm
Rotation Speed0 to 160 rpm
Spindle120 mm Spindle OD
Head Travel23 ft (7.05 m)
BREAK OUT WRENCH
Clamping Range3-1/2 inch (90mm) to 5 inch (127mm)
Torque16,000 lb-ft (21.7 KN-m)
ROD HANDLING
Manual Rod Handler (ARH)Rod Size: 4-1/2 inch (114.3 mm)
Rod Box Capacity6 Rods @19 ft (6m)
DHD LUBRICATOR
Flow1 to 1.5 ltr/hr
ControlFlow Control STEPLESS Position Selector
Capacity15 L
CHASSIS
Ashok Leyland 2820 or similar variant as Per Customer Request
Hydraulic System is Powered by Truck Engine Through Specially Designed PTO
LEVELLING JACK
Drill End Jack Bore100mm Stroke 850mm
Non Drill End Bore100mm Stroke 850mm
HYDRAULICS
Hydraulic Tank Capacity159 gallons (600L)
Hydraulic Filtration10 micron
Main Pump151 cc @2,500 psi (180 bar)
Rotation Motor400 cc @2,500 psi (173 bar)
Slow Feed pump7.5 cc @2,500 psi (173 bar)
Jack Levelling Pump18.2 cc @2,500 psi (173 bar)
WATER INJECTION PUMP
Flow 56 lpm
