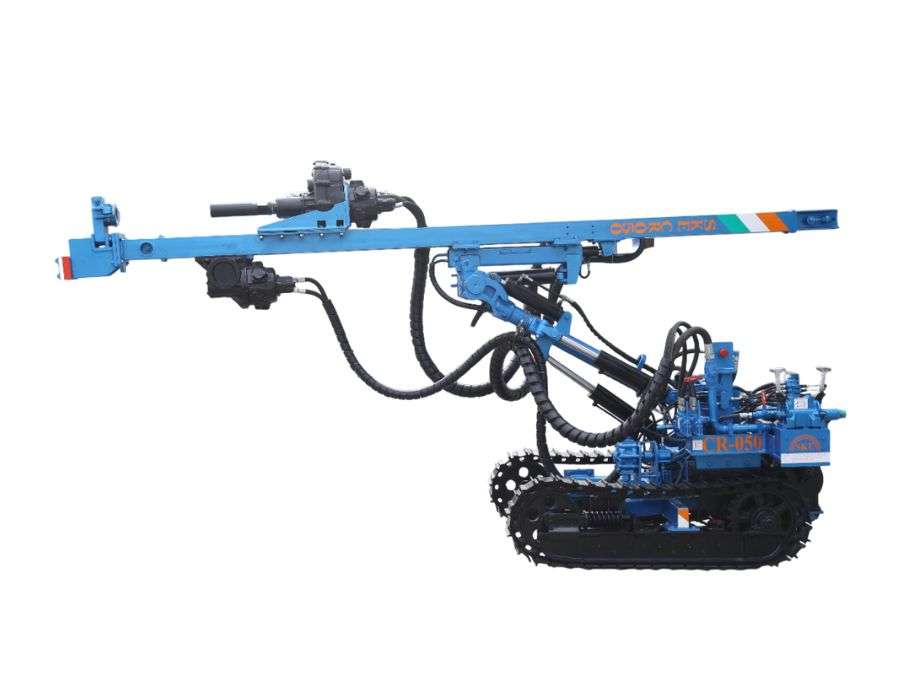

Crawler Mounted Blast Hole Rig
(SKE CR-050)

Heavy Duty Design: Constructed with heavy-duty ISMC Member to bear mining vibration, which covers wide Horizontal, Vertical & angular drilling positions.
Feed: CR-050 is equipped with a 5 H.P. air motor with gearbox, which provides better productivity connected to a heavy-duty 14″ feed chain for deep drilling.
Portability: CR-050 is compact and easy to transport with the compressor on a mining site.
DTH Drilling: CR-050 is designed to operate with a powerful DTH hammer.
Air Motor: The rig is equipped with a new design, high-performance 5 H.P. air motor. All four motors have the same interchangeable design, making them a cost-effective choice.
Maintenance: The machine is easy to repair and offers a budget-friendly cost of ownership.
Productivity: CR-050 can drill 30 to 60 ft/hr.
