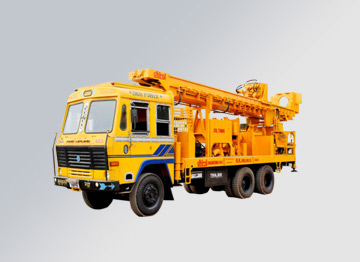

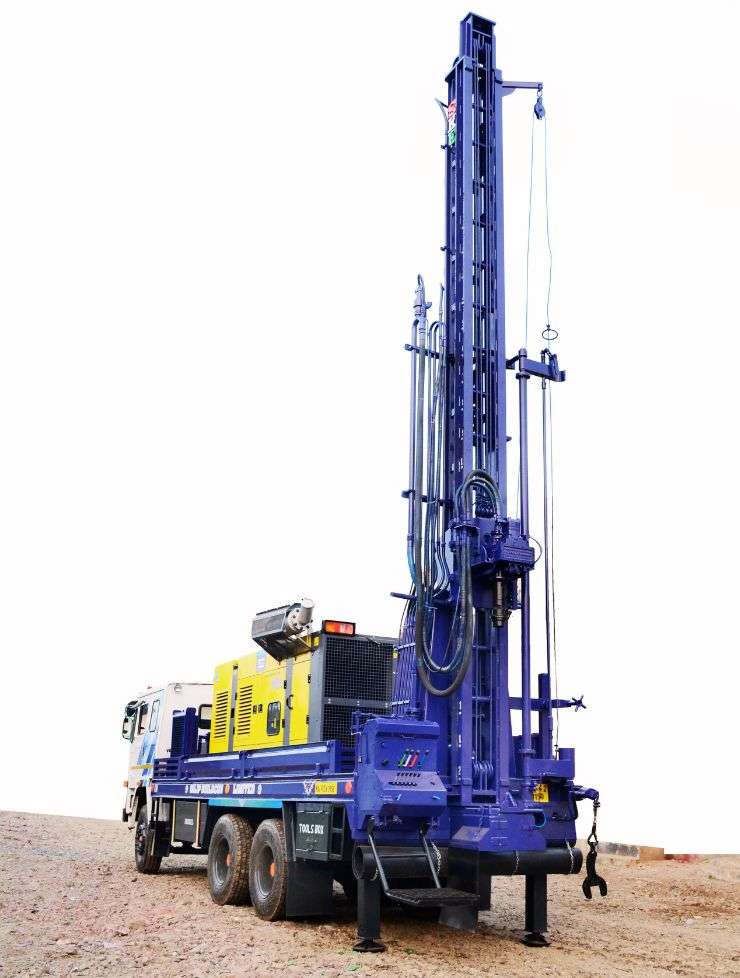

SKE- DTH-100 Technical Data | |
---|---|
Application | Water Well Drilling |
Feed System | Pull back: 260KN |
Pull down: 127KN | |
Pull Up Speed: 36m/min | |
Pull Down Speed: 75m/min | |
Drill Feed: 1.5m/min | |
Tower | Length: 9m |
Width: 520mm | |
Depth: 420mm |
ROTARY HEAD | |
---|---|
Torque | Low Speed: 8,000 ft-lbs (10.8 KN-m) @105 rpm High Speed: 5,400 ft-lbs (7.3 KN-m) @160 rpm |
Rotation Speed | 0 to 160 rpm |
Spindle | 120 mm Spindle OD |
Head Travel | 23 ft (7.05 m) |
BREAK OUT WRENCH | |
Clamping Range | 3-1/2 inch (90mm) to 5 inch (127mm) |
Torque | 16,000 lb-ft (21.7 KN-m) |
ROD HANDLING | |
Manual Rod Handler (ARH) | Rod Size: 4-1/2 inch (114.3 mm) |
Rod Box Capacity | 6 Rods @19 ft (6m) |
DHD LUBRICATOR | |
Flow | 1 to 1.5 ltr/hr |
Control | Flow Control STEPLESS Position Selector |
Capacity | 15 L |
CHASSIS | |
Ashok Leyland 2820 or similar variant as Per Customer Request | |
Hydraulic System is Powered by Truck Engine Through Specially Designed PTO | |
LEVELLING JACK | |
Drill End Jack Bore | 100mm Stroke 850mm |
Non Drill End Bore | 100mm Stroke 850mm |
HYDRAULICS | |
Hydraulic Tank Capacity | 159 gallons (600L) |
Hydraulic Filtration | 10 micron |
Main Pump | 151 cc @2,500 psi (180 bar) |
Rotation Motor | 400 cc @2,500 psi (173 bar) |
Slow Feed pump | 7.5 cc @2,500 psi (173 bar) |
Jack Levelling Pump | 18.2 cc @2,500 psi (173 bar) |
WATER INJECTION PUMP | |
Flow 56 lpm |
